GMB Series Meter Shunt
GMB
5A~5000A 10mV~100mV
1μΩ~1mΩ ±0.1%~±5% ±10ppm~±200ppm
1μΩ~1mΩ ±0.1%~±5% ±10ppm~±200ppm
Quantity:
Product Picture:

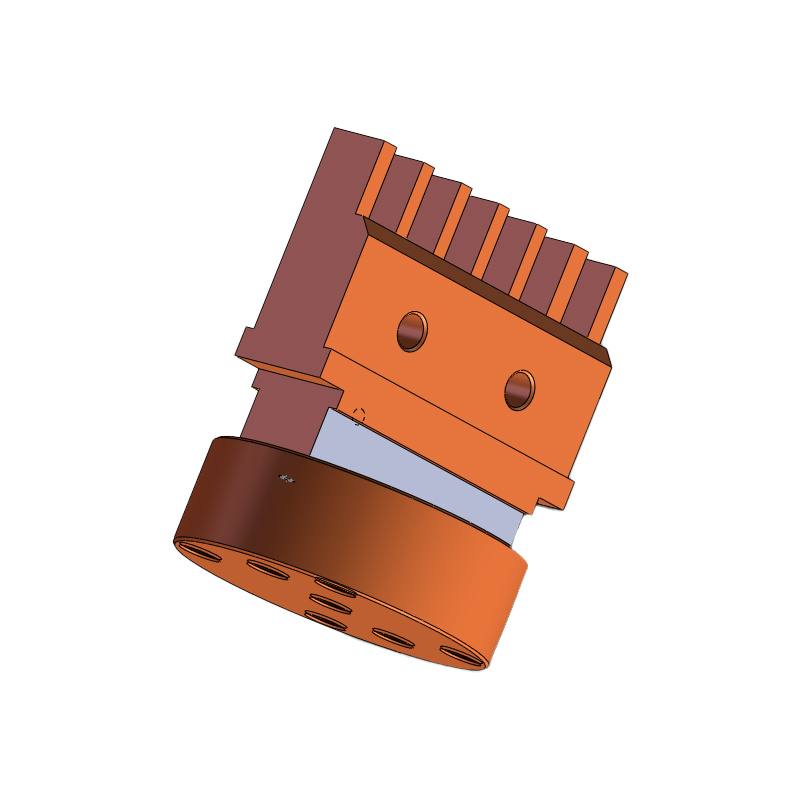

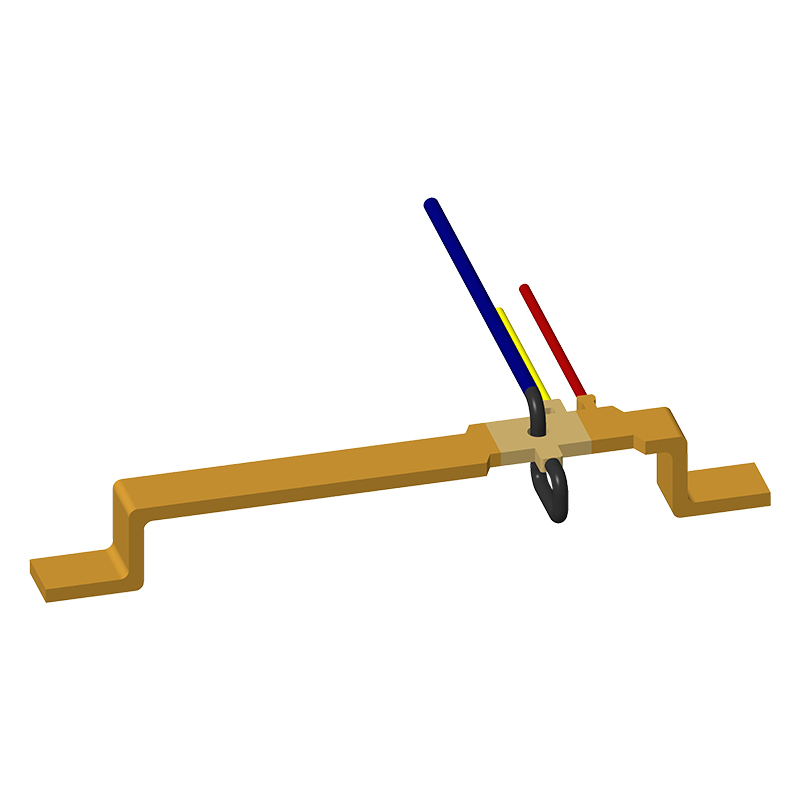

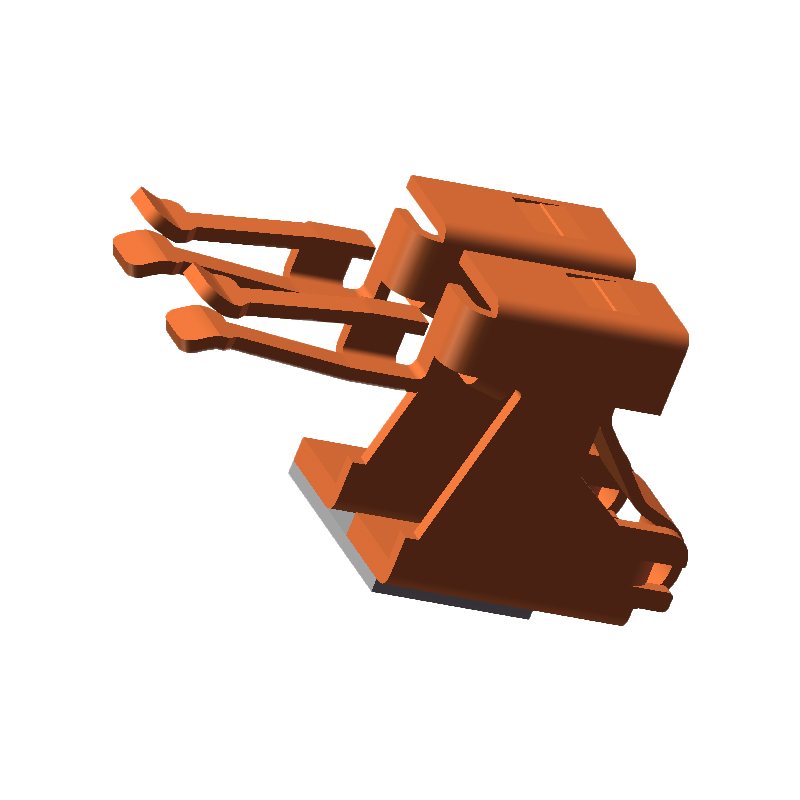

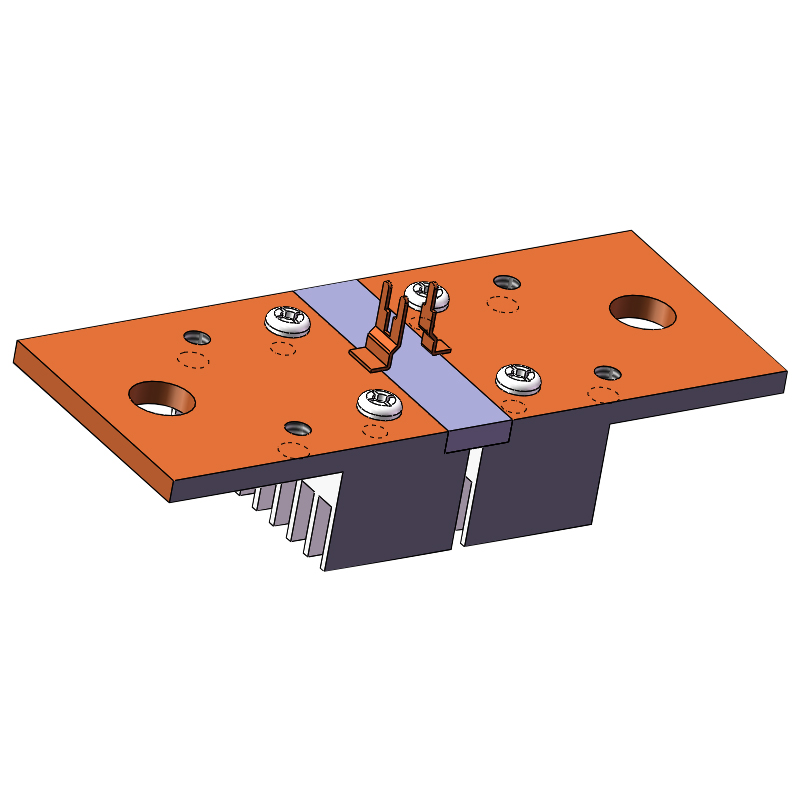

DC Meter Shunt AC Meter Shunt Frame Circuit Breaker Shunt Smart Circuit Breaker Shunt
Product Features：
- High-precision measurement
- Low power design
- Wide current range
- Good temperature stability
- Compact structure
- High reliability
- Strong anti-interference ability
Support customize, welcome to contact us for more solutions.
Series | Rate Current (A) | Rate Voltage (mV) | Resistance (min) | Resistance (max) | Tolerance | TCR (ppm/℃) | Company Part |
GMB | 100A~1000A | 10mV~100mV | 5 μΩ | 1mΩ | ±0.1%~±5% | ±10ppm~±100ppm | GMB-DC |
GMB | 10A~150A | 10mV~100mV | 5 μΩ | 1mΩ | ±0.1%~±5% | ±10ppm~±50ppm | GMB-AC |
GMB | 100A~5000A | 10mV~100mV | 1 μΩ | 0.5mΩ | ±0.1%~±5% | ±10ppm~±200ppm | GMB |
GMB | 5A~250A | 10mV~100mV | 50 μΩ | 1mΩ | ±0.1%~±5% | ±10ppm~±200ppm | GMB |
